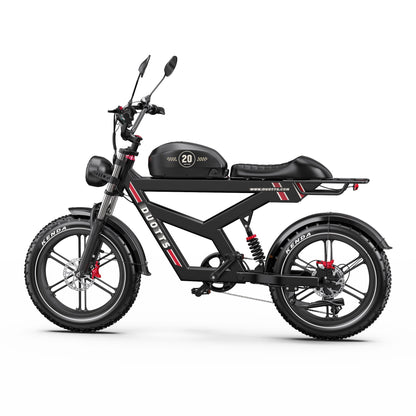

Duott's F20
Duott's F20
Vårt engagemang
Träden planteras av EarthLungs Reforestation Foundation & Veritree i samarbete med thegoodapi.com. Vill du göra ytterligare en insats? I varukorgen har du möjlighet att, för endast 12 kronor, plantera två extra träd och därmed bidra ännu mer till miljön.
Powered by theGoodAPI
In stock
Couldn't load pickup availability
| Prestanda | |
|---|---|
HastighetMaxhastighet varierar beroende på vägunderlag, användarvikt, vind, lutning, körläge och temperatur.
|
40 km/h
|
FartspärrVissa modeller levereras med en hastighetsbegränsning på 25 km/h. Denna fartspärr kan enkelt tas bort genom att följa instruktionerna i videon nedan.
|
25 km/h
|
MotoreffektDen elektriska spänningen på batteriet, där det vänstra värdet representerar det nominella värdet för normal drift och det högra värdet indikerar det maximala värdet.
|
750W/750W
|
Vrid momentMäter den roterande kraften i Newtonmeter (Nm) som appliceras av motorn för att åstadkomma rotation. Ett högre värde indikerar större kraft och effektivitet vid acceleration och prestanda.
|
70 Nm
|
Stigning Hanterar lutningar och påverkar ansträngningen vid körning upp eller ner.
|
35°
|
DämpareMekanism som absorberar stötar för en mjukare körupplevelse, kan finnas både fram och bak.
|
Front and Back
|

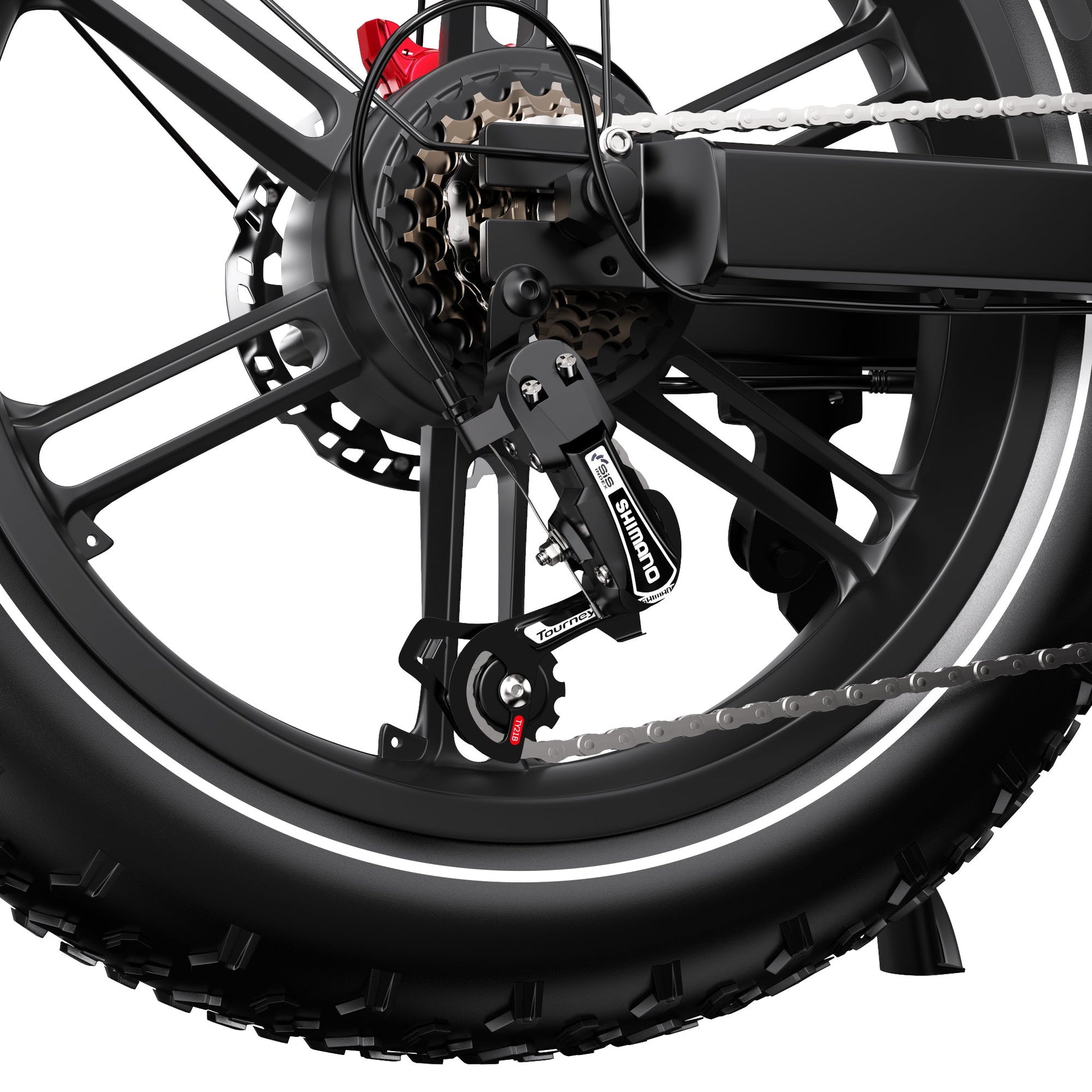

VäxlarTillåter anpassning av motståndet och hastigheten på en elcykel; kan variera i antal för optimal prestanda i olika terränger och förhållanden.
|
7 pcs
|
KörlägeDen inställning som styr dess drift, där användaren kan välja mellan olika hastighetsnivåer för ökad flexibilitet och anpassning under körning.
|
5 pcs
|
Elektriskt lägeDetta läge möjliggör körning av elcykeln helt utan pedalanvändning. Aktivera för att styra fordonets hastighet enbart med ett gasreglage, vilket erbjuder en bekväm och ansträngningsfri körupplevelse.
|
Yes |
| Batteri | |
RäckviddRäckvidd varierar beroende på vägunderlag, användarvikt, vind, lutning, körläge och temperatur.
|
140 km
|
KapacitetDen nominella elektriska spänningen på batteriet, vilket indikerar dess optimala driftsnivå för prestanda och säkerhet.
|
52V 27Ah
|
LaddningDen tid det tar för att ladda batteriet från tom till full kapacitet, vilket påverkar användarens väntetid mellan användningarna.
|
8-9 hrs
|
AvtagbartMöjlighet att enkelt ta bort batteriet för laddning och bekvämlighet. Eliminerar även risken för stöld av hela fordonet när batteriet låses bort separat.
|
Yes |
Dubbla ladduttagEn funktion som möjliggör användning av två laddkablar samtidigt, vilket förkortar laddningstiden och ger flexibilitet vid användning av olika laddstationer.
|
No |
| Hjul | |

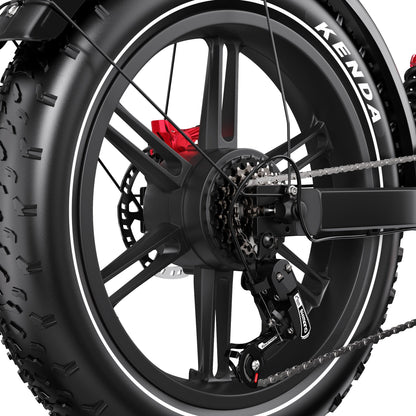

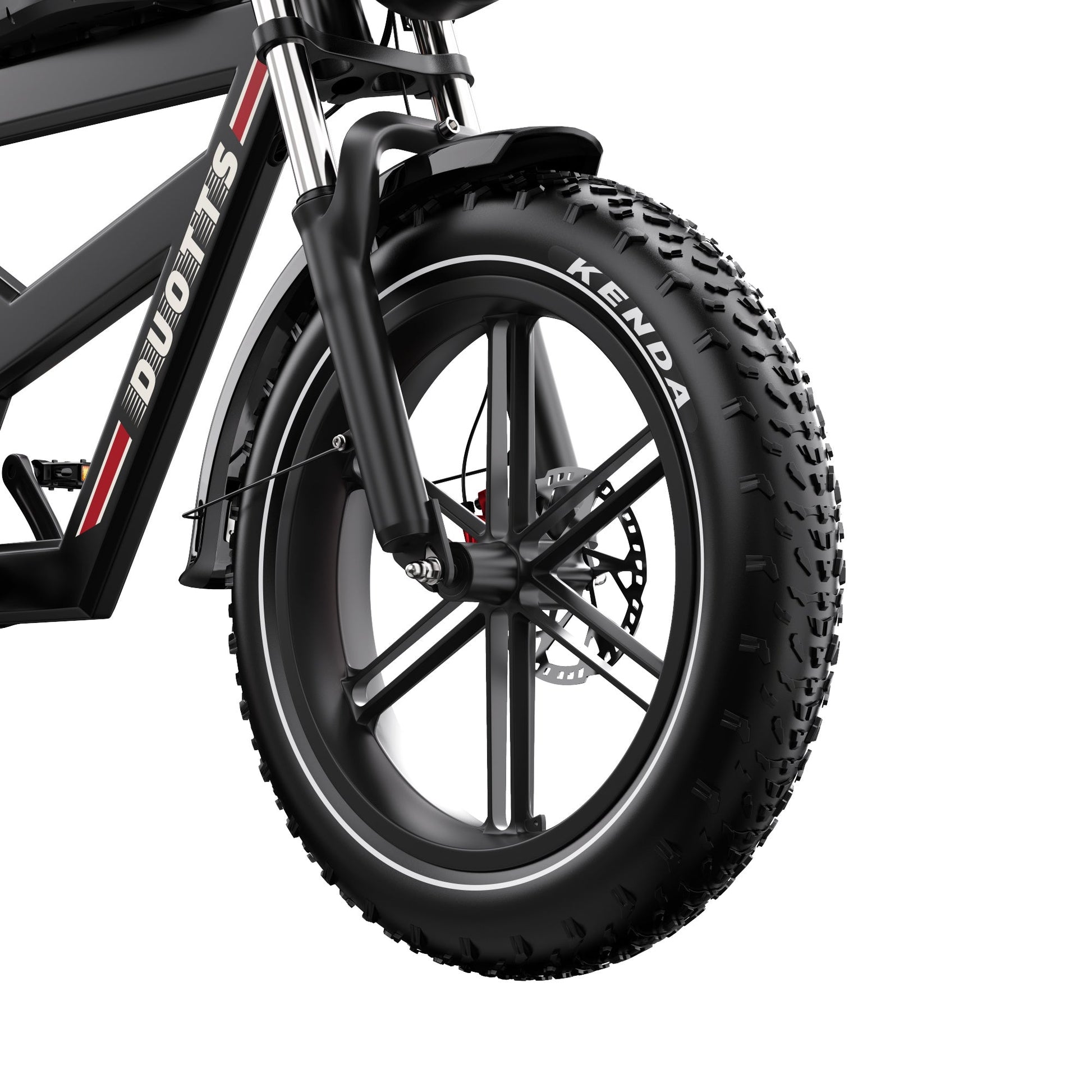

DäckLuftfyllda däck ger komfort och grepp men kan punktera. Solida däck är punkteringsfria och slitstarka. Honeycomb och semi-solida däck kombinerar punkteringsfrihet med komfort och grepp. Off-road däck passar tuff terräng men kan påverka hastighet.
|
Off-road (Air)
|
StorlekAnger de fysiska dimensionerna på däck, vilket påverkar både hastighet och stabilitet under körning, med vanliga storlekar som 8,5 tum och 10 tum för olika användningsområden.
|
20,0"
|
Fritt från punkteringDäck som är konstruerade för att motstå punkteringar och eliminera risken för plötsliga stopp, vilket ökar pålitligheten och minimerar behovet av reparationer.
|
No |
| Säkerhet | |
BromsarSystemet som används för att kontrollera hastigheten, vilket är avgörande för säkerheten och ger användaren möjlighet att reglera farten.
|
2 oil disc brakes
|
IP-klassEn standardiserad kod som representerar tätning mot vatten och damm. Hög IP-klass indikerar ökad skyddsnivå mot yttre påverkan, vilket är viktigt för att förlänga enhetens livslängd och säkerställa pålitlig prestanda.
|
IPX4
|
LamporInbyggda ljuskomponenter som ger belysning för ökad synlighet och säkerhet under körning, särskilt vid låga ljusförhållanden eller nattkörning.
|
Front & Back
|
BlinkersIntegrerade ljussignaler som ger ökad synlighet och trafiksäkerhet genom att indikera riktning vid svängar och öka medvetenheten hos andra trafikanter.
|
Yes |
Elektriskt signalhornEn ljudanordning som använder elektrisk ström för att producera en hörbar ljudsignal. Syftet med signalhornet är att öka säkerheten och uppmärksamheten för föraren i trafiken.
|
Yes |
NFC-låsEn funktion som möjliggör trådlös och säker kommunikation genom NFC, vilket används för att låsa genom en enkel beröring med ett nyckelkort.
|
No |
NyckelEn nyckelkomponent som används för att aktivera eller stänga av dess tändningssystem eller låsa batteriet, vilket ökar säkerheten och förhindrar obehörig användning av enheten.
|
Yes |
| Storlek | |
MåttAnger de fysiska dimensionerna, inklusive längd, bredd och höjd, vilket är avgörande för att bedöma storlek och lämplighet för användaren samt för förvaring och transport.
|
1740 x 760 x 1225 mm
|
ViktRepresenterar den totala tyngden, vilket är viktigt för hanterbarhet, portabilitet och användarens bekvämlighet vid förflyttning och förvaring.
|
38.03 kg
|
MaxviktDen högsta rekommenderade belastningsgränsen som tillverkaren föreslår för en säker och optimal användning, vilket är viktigt för prestanda och hållbarhet under användning.
|
150 kg
|
Kropps längdDen rekommenderade kroppslängden hjälper dig att välja en elcykel som passar din längd, vilket ger optimal komfort och kontroll vid cykling.
|
170-200cm
|
| Komfort | |
AppEn tillgänglig programvara som är kompatibel med elsparkcykeln/elcykeln och ger användaren extra funktioner, som navigering, hastighetskontroll eller batteriövervakning via en smartphoneapplikation för en förbättrad användarupplevelse.
|
Yes |
SadelEn justerbar sittyta som erbjuder personlig komfort och möjliggör anpassning för en bekväm körupplevelse.
|
Yes |
Justerbart styreEn funktion som tillåter användaren att anpassa höjden på styret för att uppnå en personlig och bekväm körposition.
|
No |
FarthållareEn inbyggd funktion som möjliggör att användaren kan behålla en konstant hastighet utan att kontinuerligt gasa, vilket ökar komforten och ger avslappnad körning på längre sträckor.
|
Yes |
USB-uttagMöjligheten att ladda och ansluta externa enheter som smartphones eller surfplattor genom USB-portar.
|
No |
VikbarVikbar innebär att elfordonet kan fällas ihop, vilket underlättar för transport, förvaring eller placering i bilen.
|
No |
| Dokument | |
ManualInformation eller material som tillhandahålls för att förklara, beskriva eller stödja en produkt, process eller system. Det kan inkludera användarmanualer, instruktionsböcker, tekniska specifikationer och säkerhetsinformation.
|
|
| Inkluderat i förpackningen | |
ArtiklarSe här vad som medföljer din produkt. Innehållet i förpackningen är listat för att säkerställa att du vet exakt vad du får med din beställning.
|

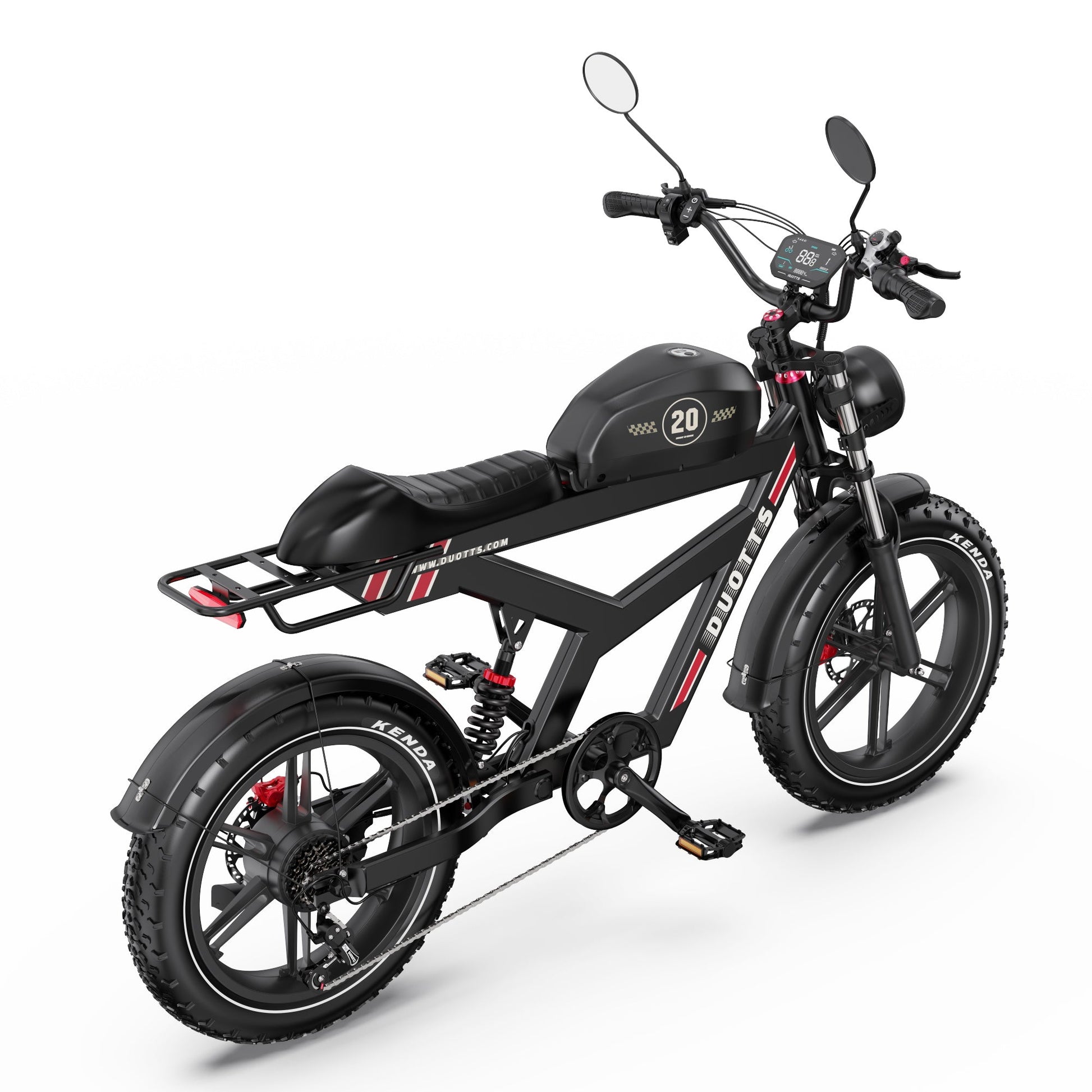

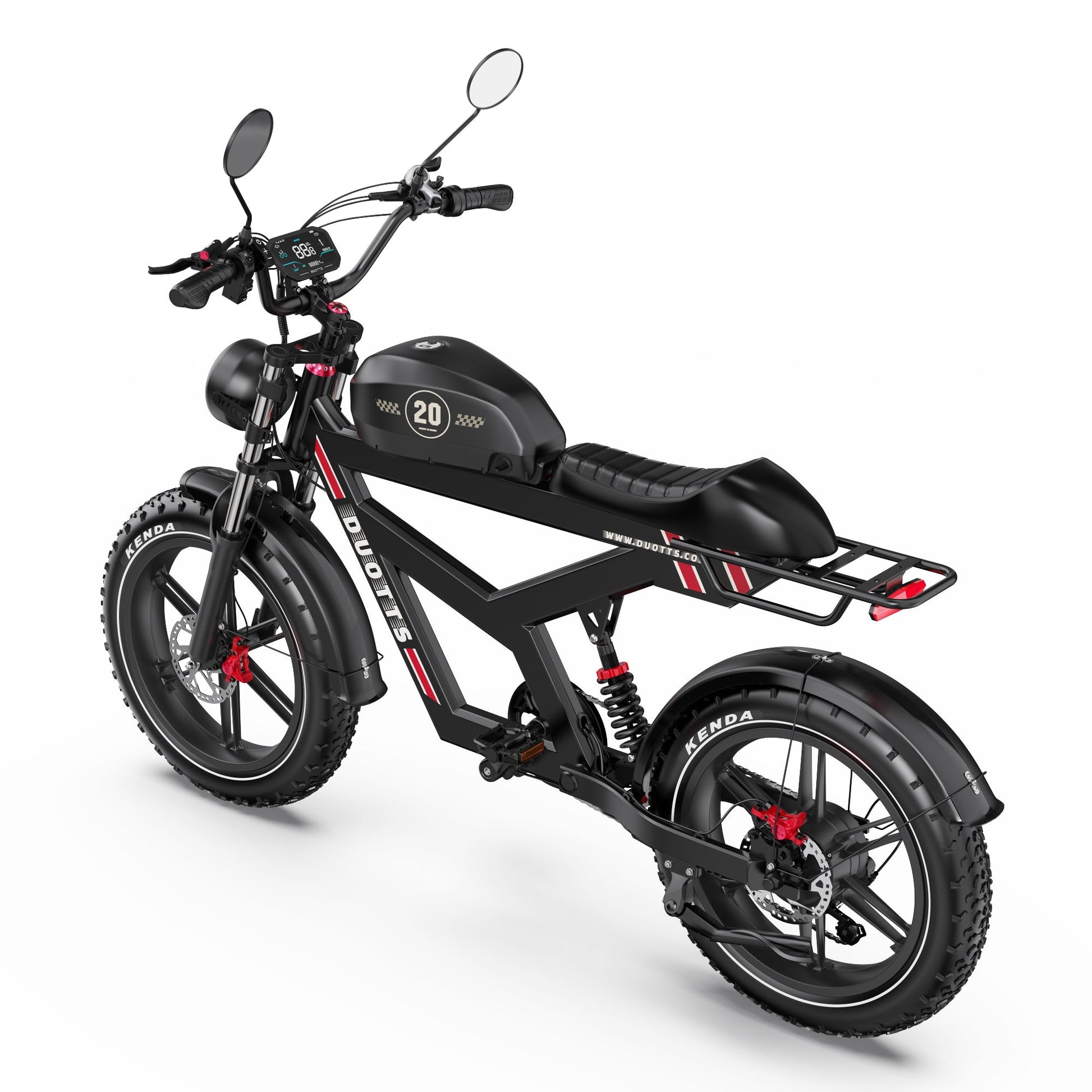

Duotts F20 Electric Bike
Charger User manual Toolkit Front & rear mudguards |
Produktbeskrivning
Produktbeskrivning

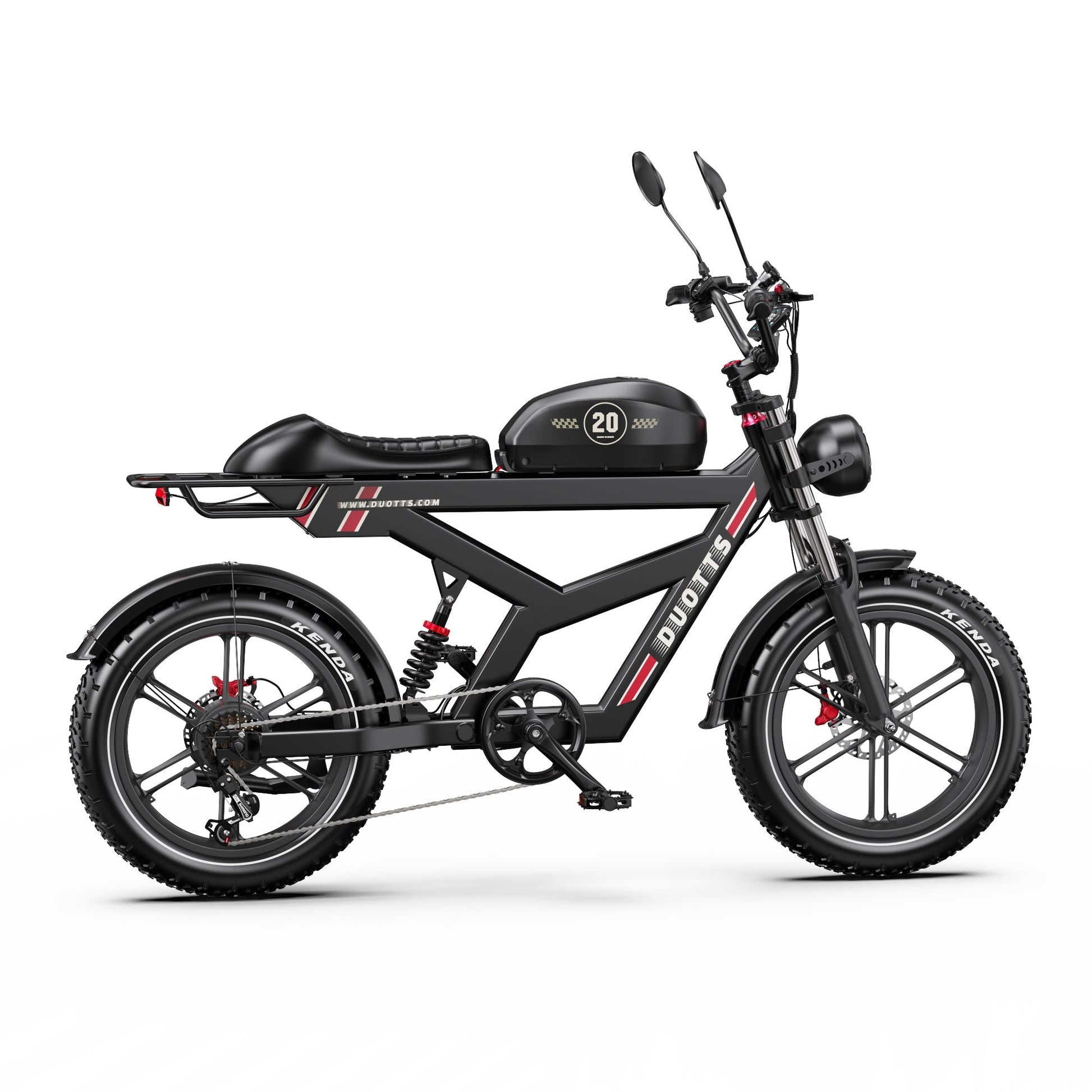

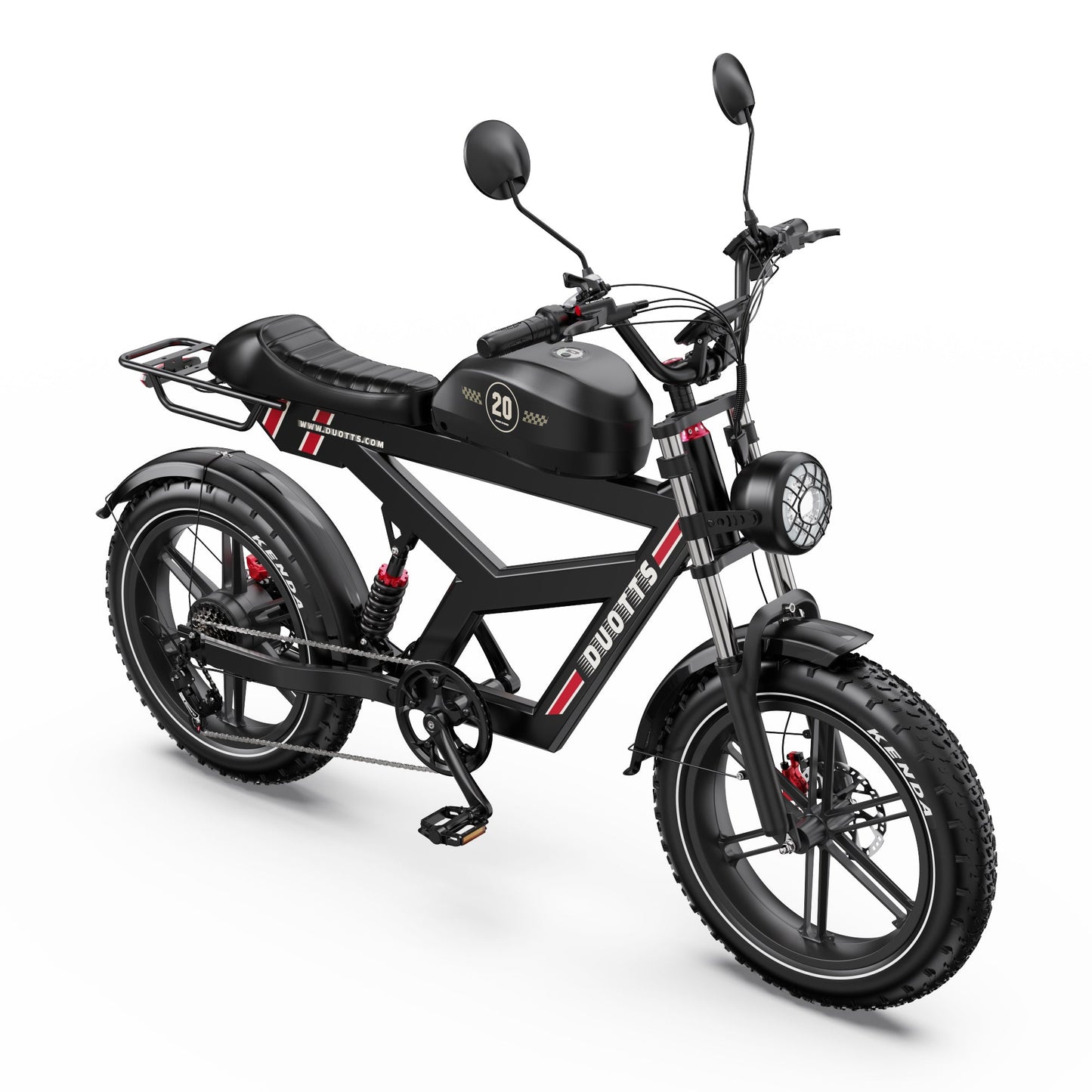

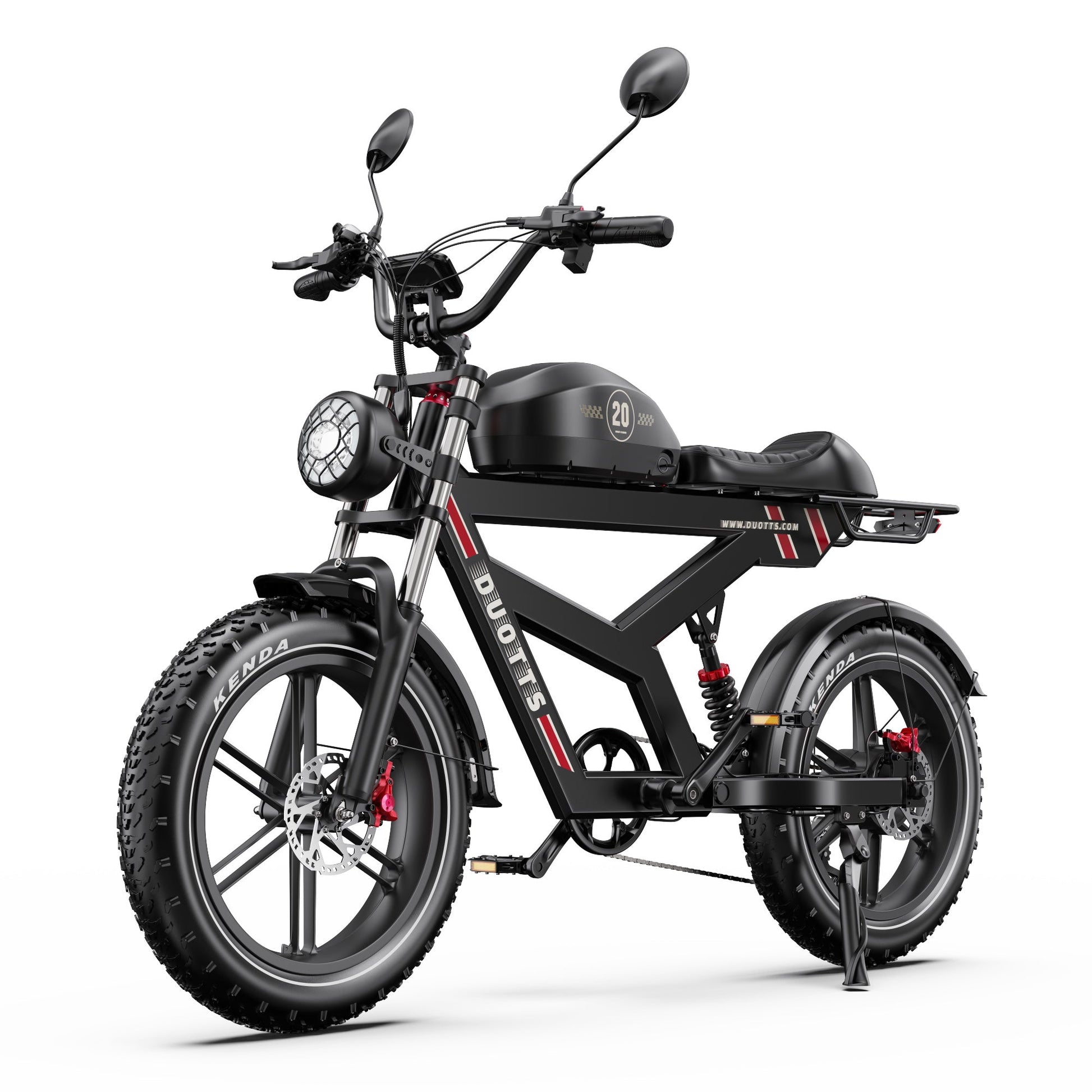

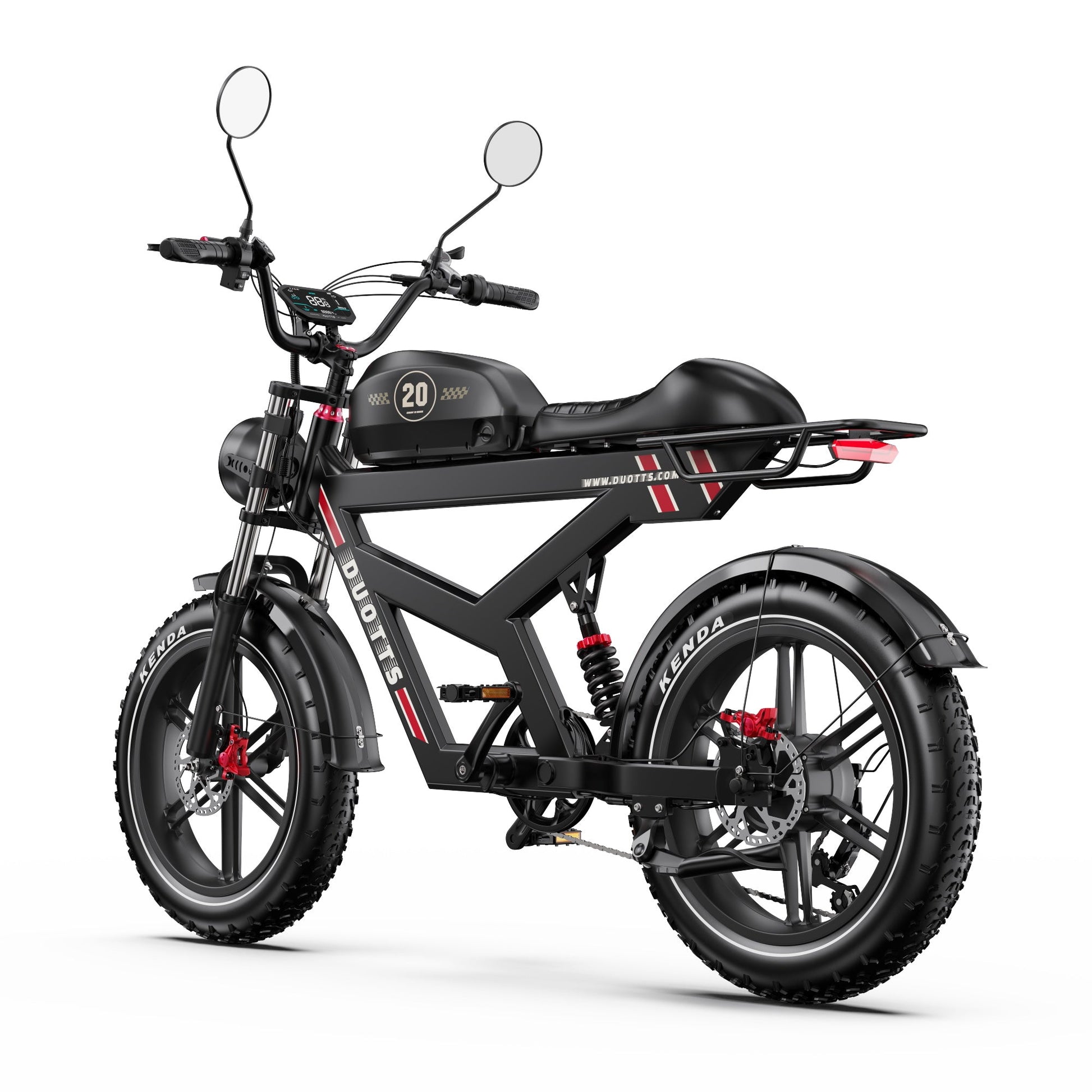

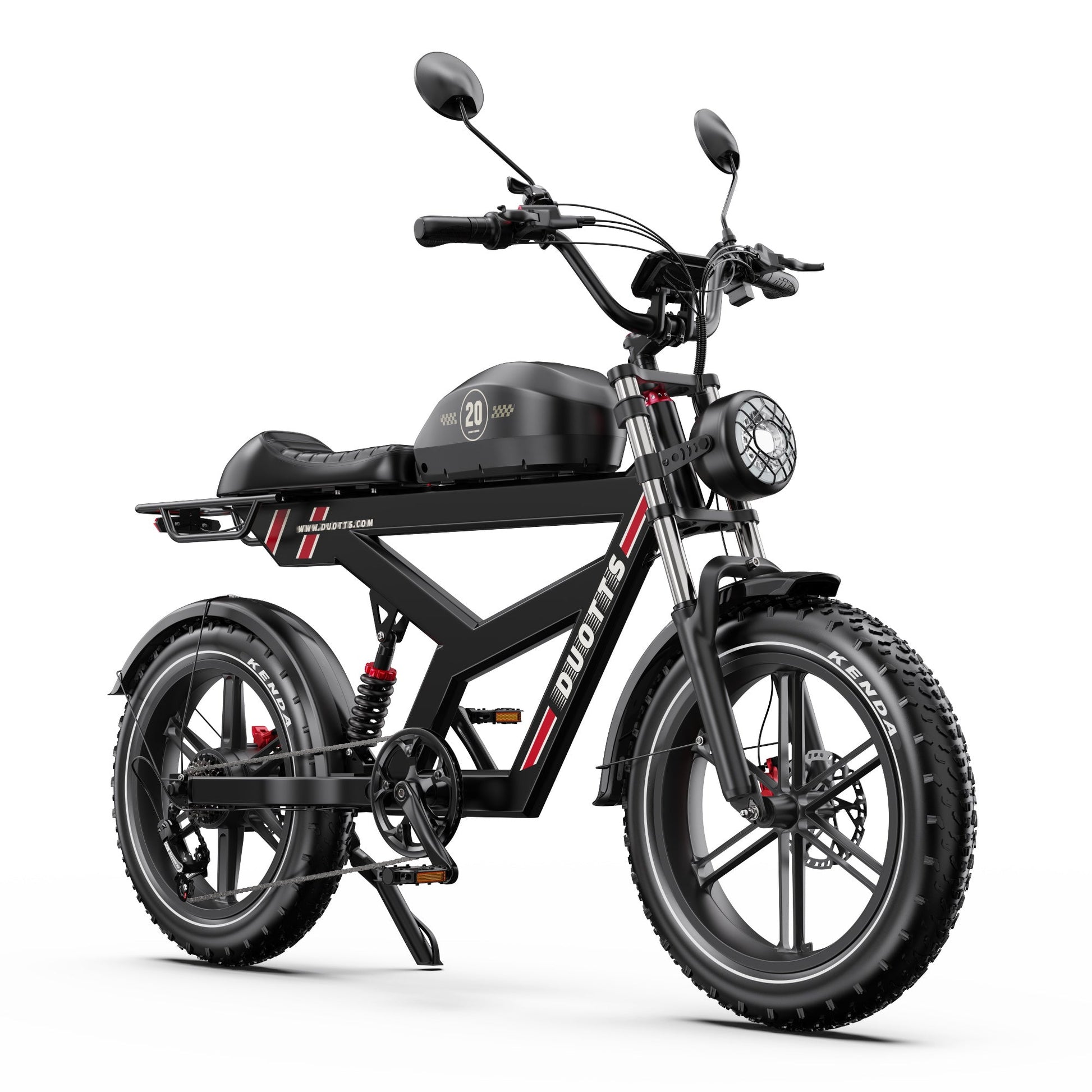

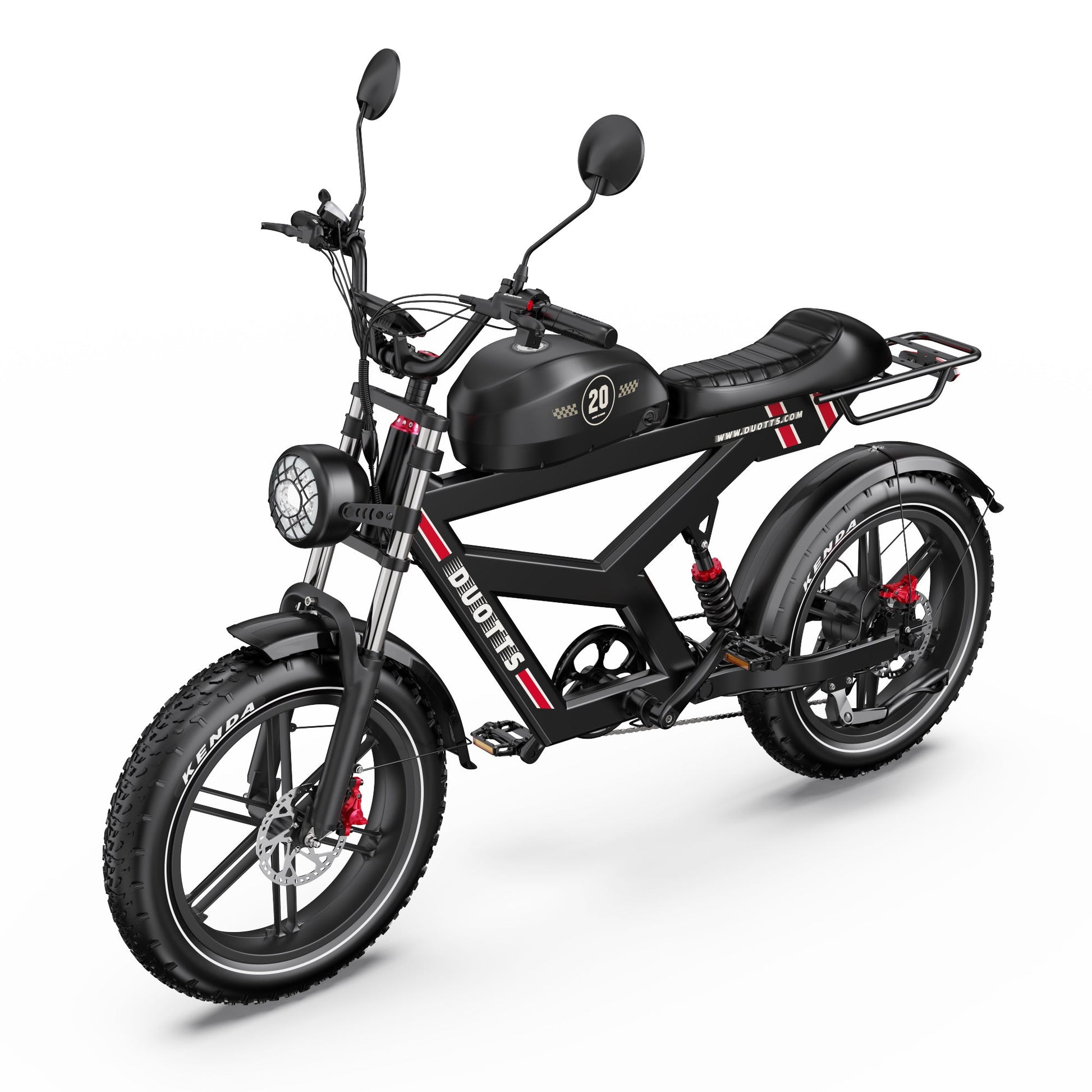

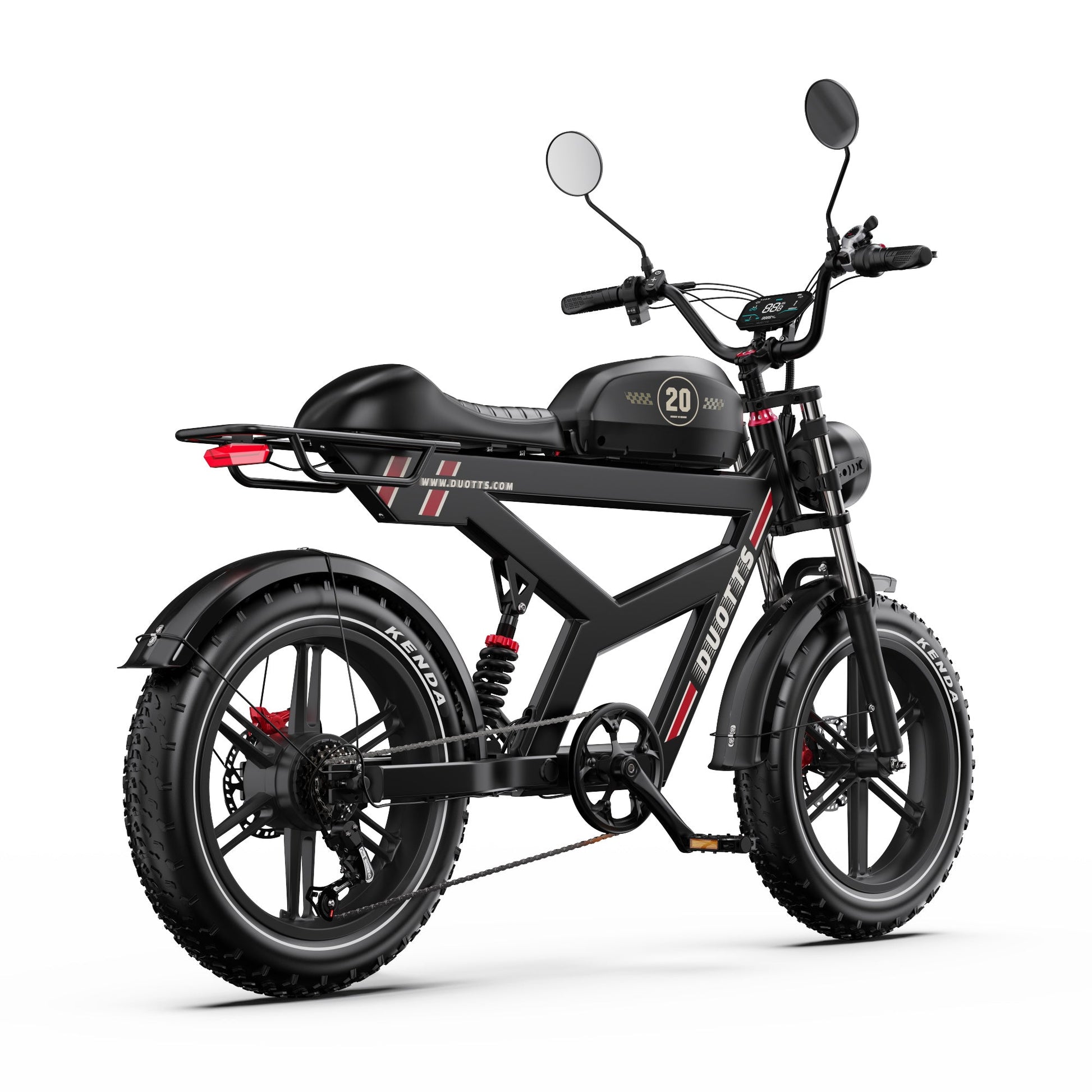

Duotts F20 electric bike: Innovative performance meets unmatched comfort.
Discover the new Duotts F20 – an electric bike that combines technical brilliance with user-focused design. As the most advanced model from the world-renowned Duotts brand, the F20 is designed for those looking for a powerful, flexible and comfortable solution for both urban life and off-road. With several new upgrades, this electric bike takes your riding experience to the next level.
Durable construction & elegant design.

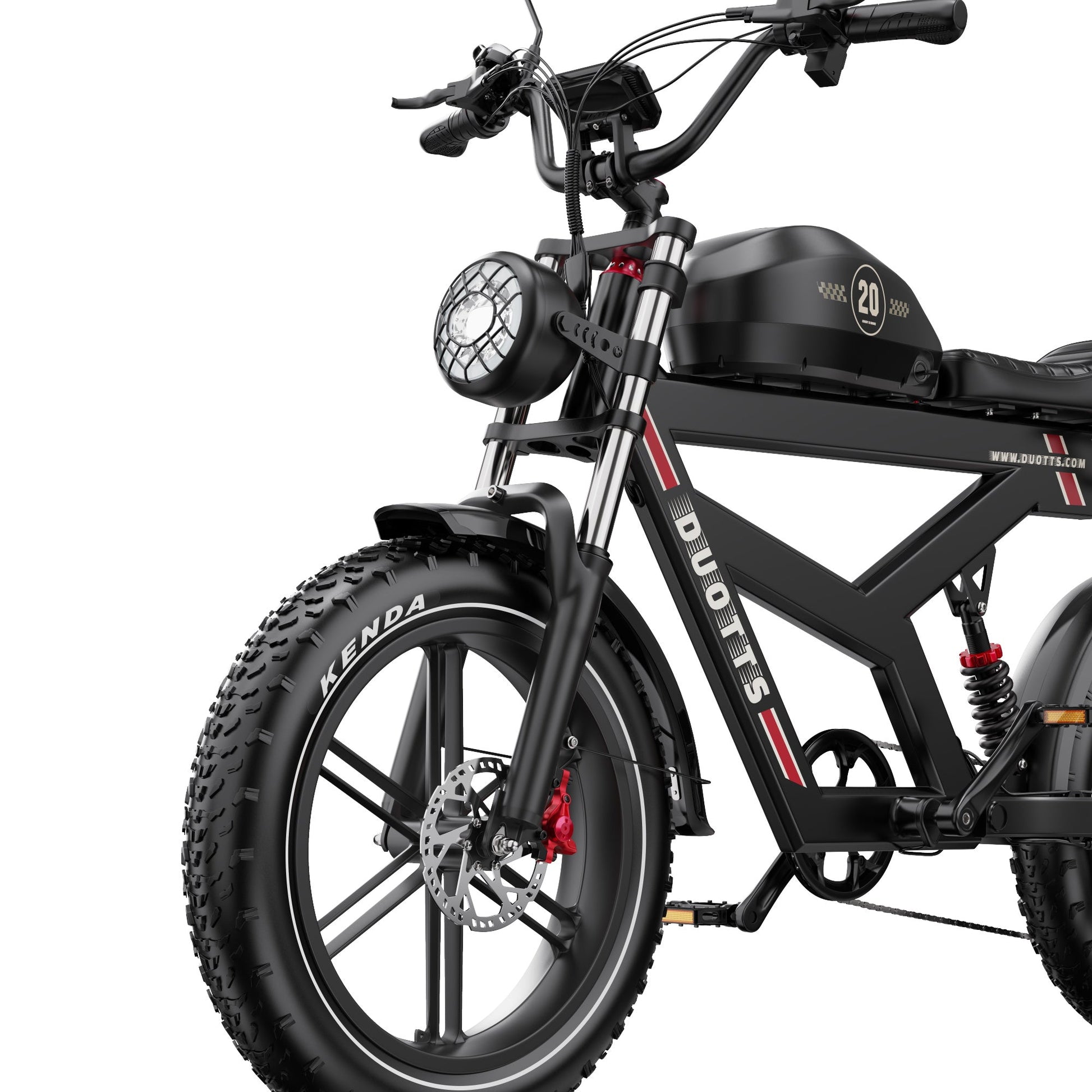

The Duotts F20 is built on a durable aluminum frame with a reinforced iron triangle in the rear support, which ensures both stability and long life. The matte black finish gives the bike a modern and elegant look - perfect for both city commuting and country road adventures. With the newly installed package holder bracket, you also get a smoother everyday life where you can easily transport bags or other accessories.
Powerful performance & adjustable speed.
Equipped with a powerful 750W motor, the Duotts F20 reaches up to 40 km/h with the speed limiter removed. To comply with local EU regulations, the speed is preset to 25 km/h, making the e-bike safe and legal for city riding. The improved smart dashboard now includes GPS navigation – so you can plan and follow your routes right from the handlebars, perfect for longer rides and newfound exploration.
Optimized for flexibility & comfort.
The bike offers five levels of pedal assistance and a pure electric riding mode, allowing you to decide how much power you want to contribute. With the ability to climb inclines of up to 35° and with both front and rear suspension – with the rear shock now upgraded for even better shock absorption – comfort is impressive regardless of the surface.
Extended range & efficient battery usage.
With a powerful 52V 27Ah battery, the Duotts F20 offers a range of up to 140 km in pedal-assist mode and 70 km in all-electric mode. The charging time is 8-9 hours, allowing you to easily charge the bike overnight and enjoy long-lasting riding pleasure all day long.
Removable battery for increased flexibility.

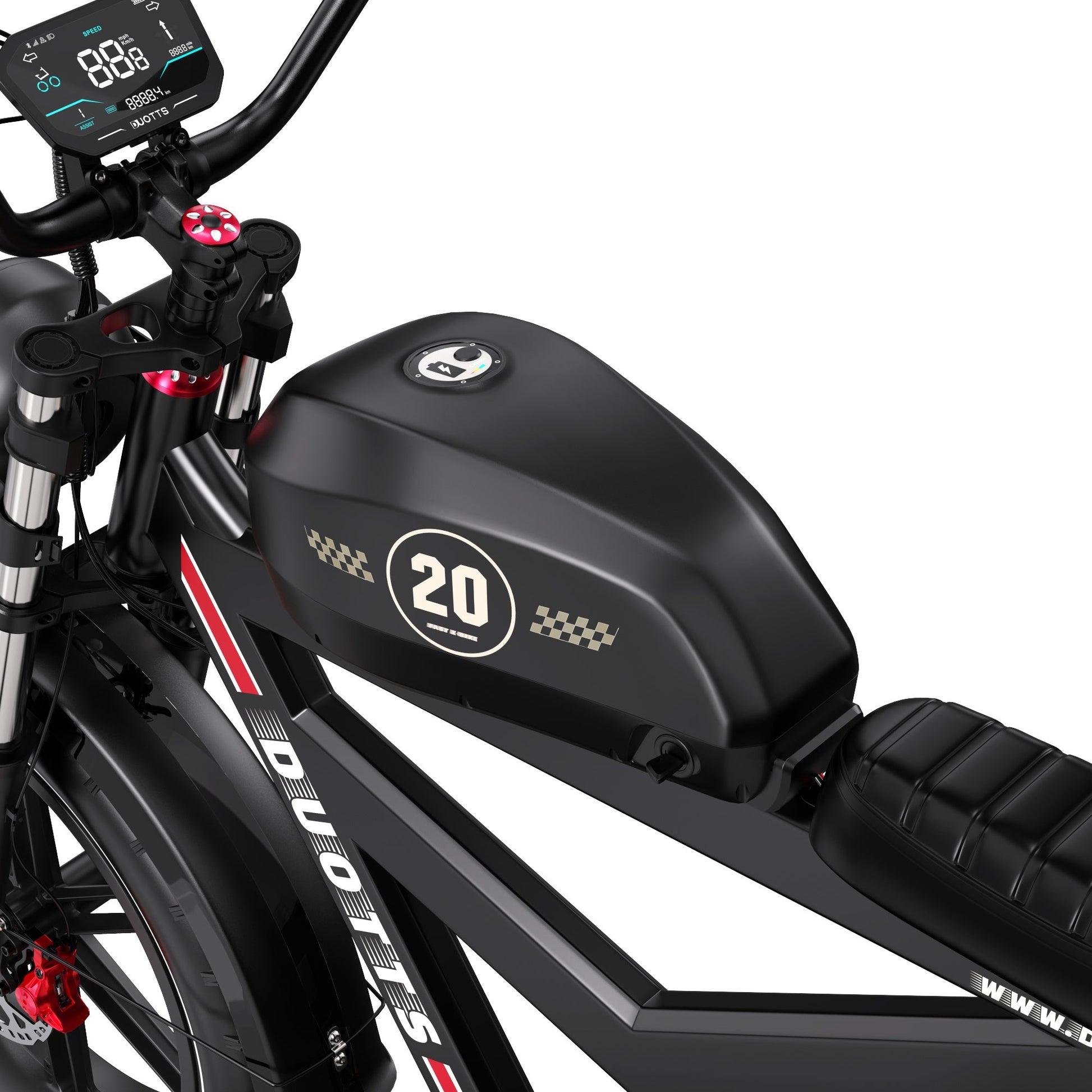

The removable battery makes charging smooth and flexible – simply remove the battery and charge it at home, in the office or wherever suits you best. This makes the Duotts F20 ideal for those who live in an apartment, work in an urban environment or store the bike in a place without direct power access.
Safety features & useful technology.

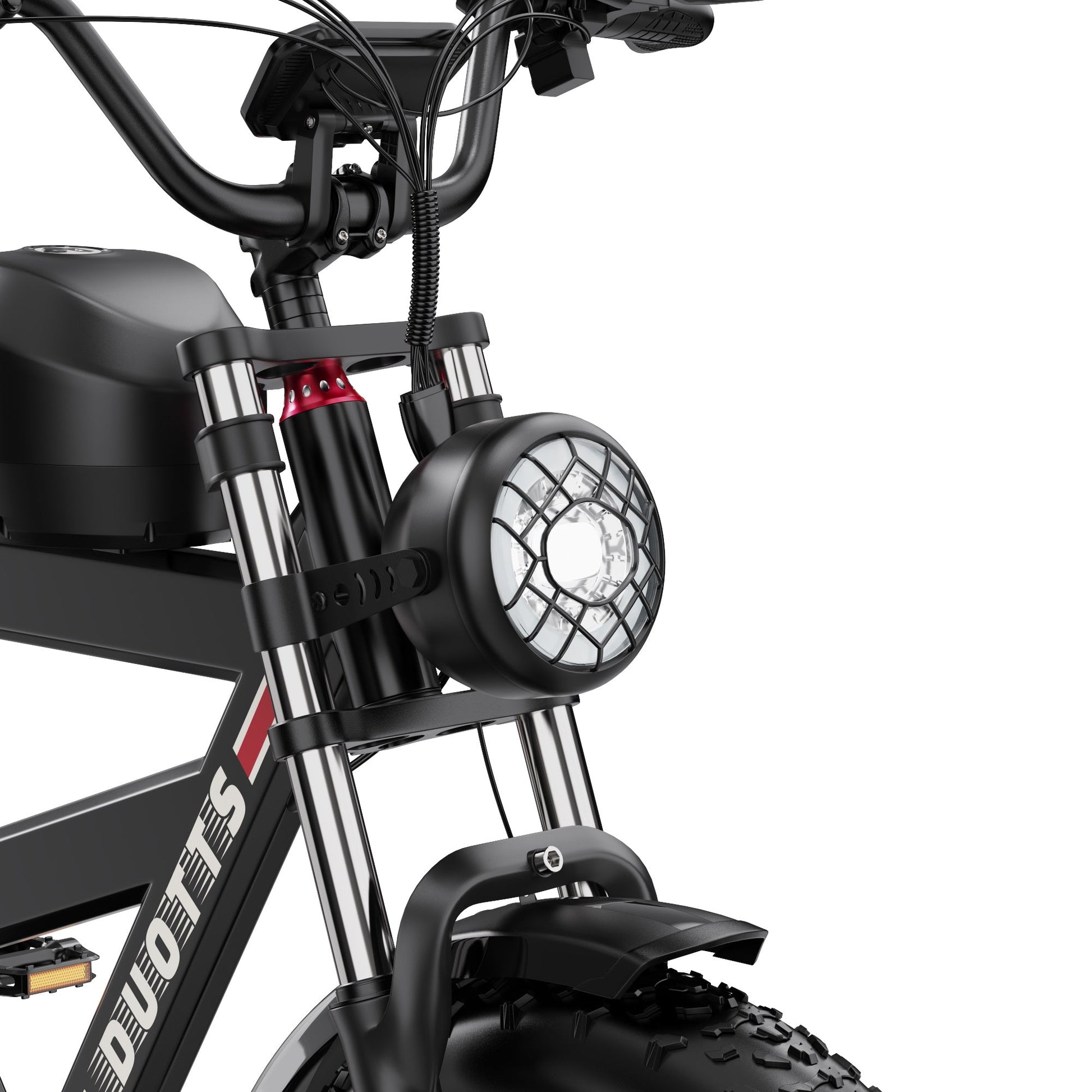

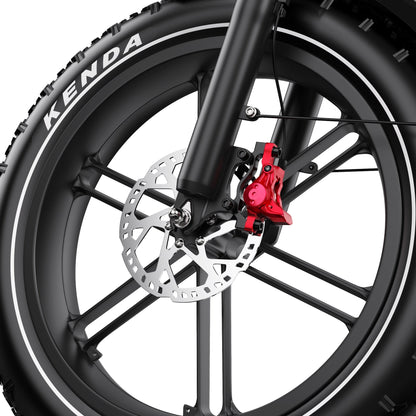

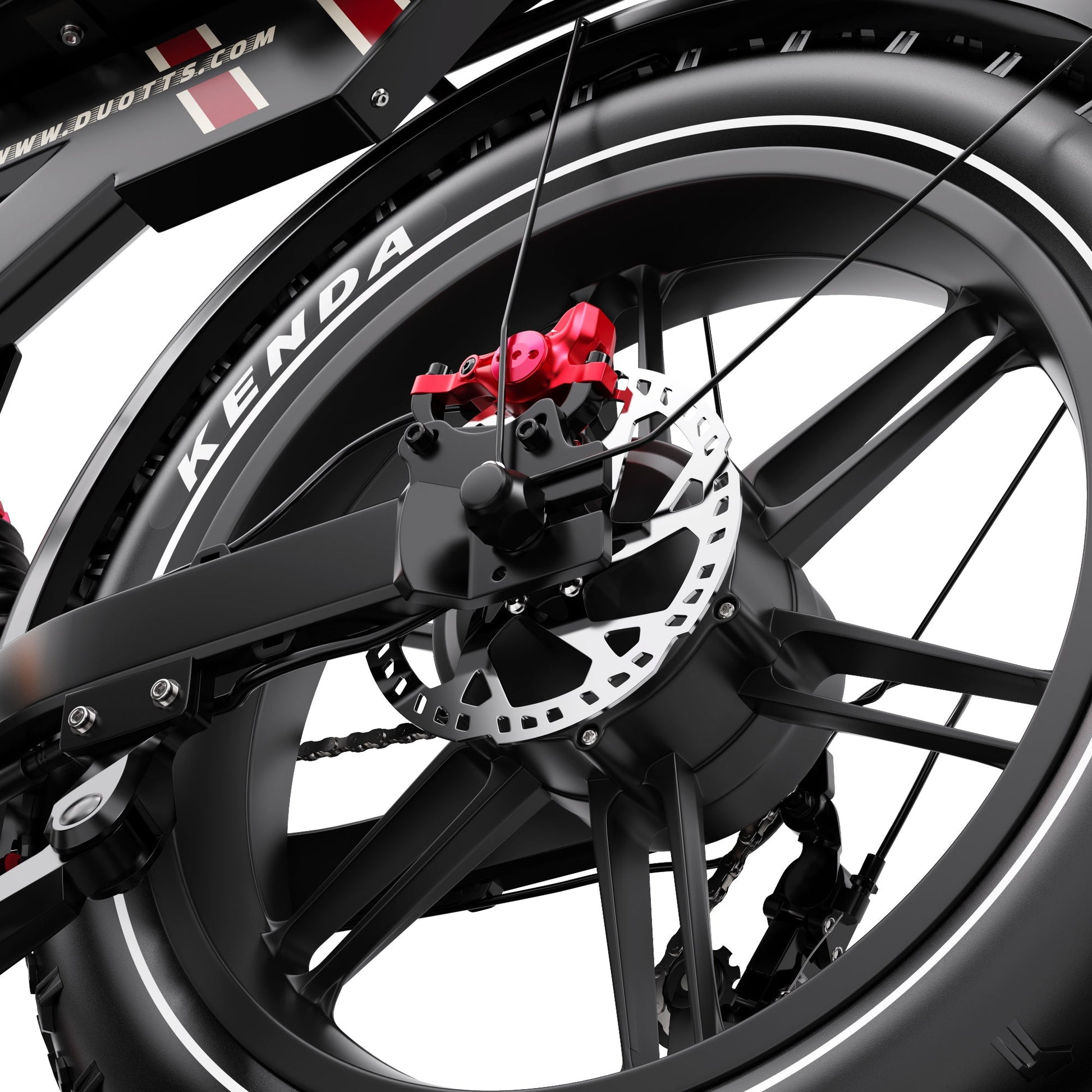

For increased safety in traffic, the F20 is equipped with two powerful oil disc brakes, IPX4 rating that can withstand light rain, and integrated indicators in the taillight. The new smart panel with GPS provides real-time information and guidance. An electric horn and a newly installed rearview mirror system make it easy to keep an eye on the traffic behind you - a significant safety improvement for city driving and highway trips.
Comfort & practical accessories.

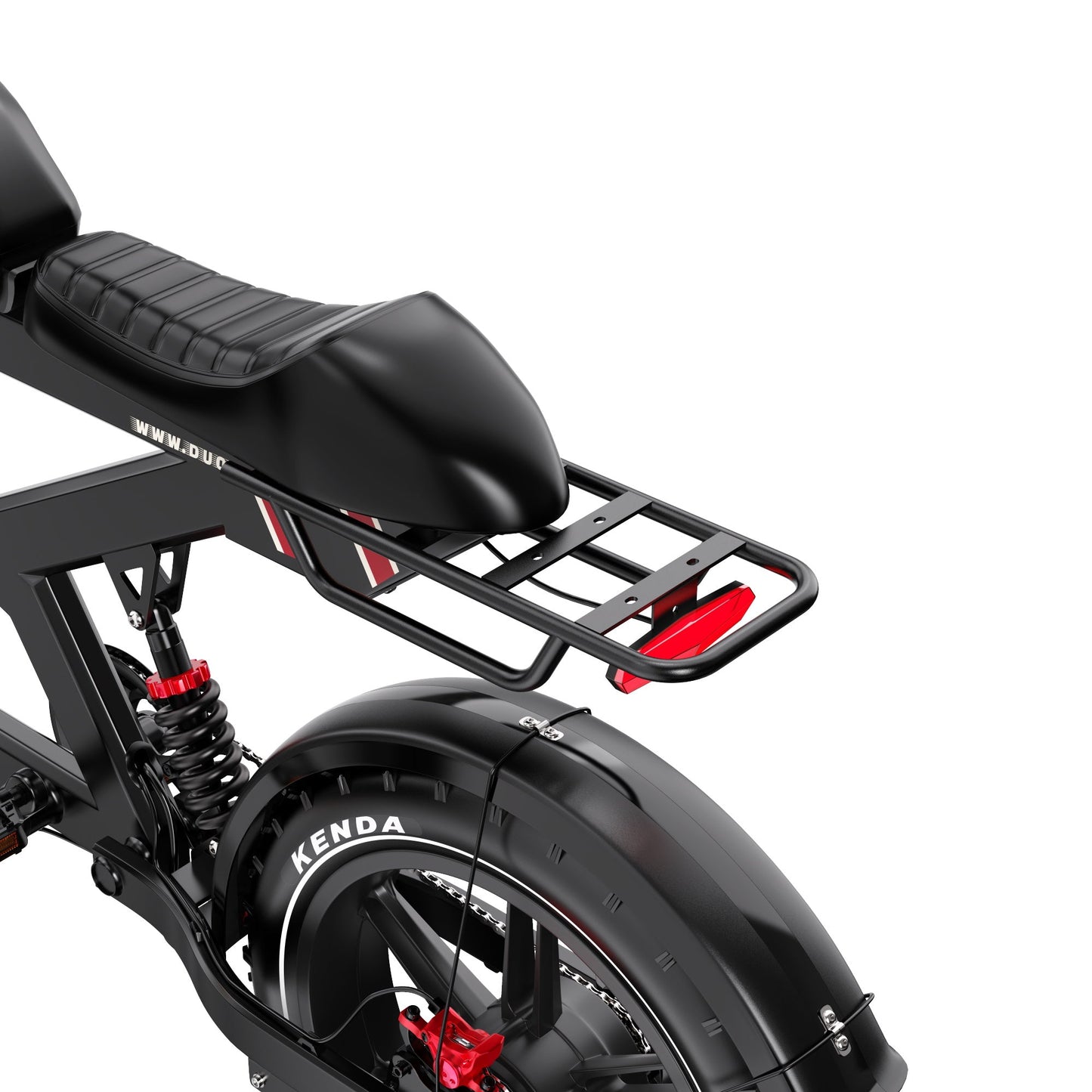

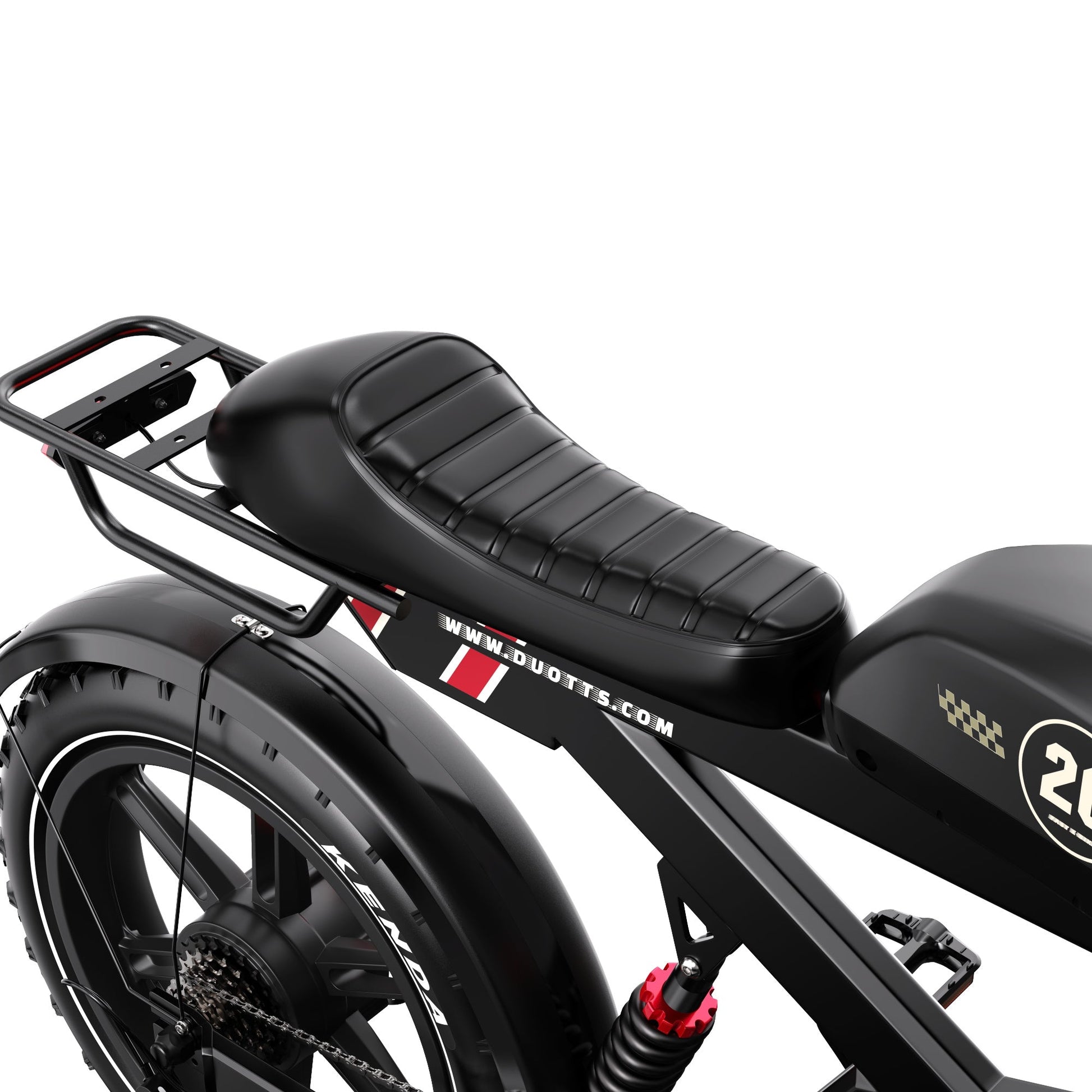

The vintage-inspired frosted black saddle is fixed in height but offers a comfortable seating position for both short and long rides. In addition to the new luggage rack mount, a tool kit is included for easy installation and maintenance.
With its combination of power, comfort and connected technology, the Duotts F20 is more than just an electric bike – it’s a complete means of transport for a modern lifestyle. Whether you’re commuting to work, discovering new landscapes or just enjoying the freedom of two wheels, this is the model that delivers on all fronts.
App compatibility.
This e-bike is compatible with an app that enhances your riding experience by giving you greater control and overview. With the help of the app, you can easily manage and customize various settings according to your needs. In addition, the app serves as a practical tool to provide a smooth and convenient user experience. It is available for download on the App Store for iOS and Google Play for Android.
Spare parts.
If you need spare parts that are not in our range, do not hesitate to contact us . We offer the possibility to special order the specific spare part you are looking for and give you a cost estimate. Our customer service is always ready to help you find the right solution for your needs and ensure that your product continues to function optimally. We strive to offer the best service to our customers and ensure that you get the support you need.
Delivery
Delivery
Shipping terms
Free shipping: Applies to orders over 699 SEK throughout Sweden.
Shipping cost: For orders under 699 SEK, a shipping fee of 69 SEK will be added.
Delivery times
All products: Delivery time is 5–10 working days.
Special orders: For special orders placed via email, such as spare parts, a delivery time of up to 20 working days applies.
Post office box or home delivery
- For larger products such as electric scooters and electric bicycles we offer always home delivery directly to your door, completely free of charge.
- When delivering e-scooters or e-bikes to your home, it is the customer's responsibility to be available at the specified address during the delivery time. The shipping company will contact you in advance to schedule a time.
- If you instead wish to collect your package via an agent, you will need to contact the relevant shipping company to make this change.
- For deliveries via Postnord, if the consignment note does not fit in the mailbox, it will be placed at your door or in a bag outside your mailbox.
Guarantee
Guarantee
You have a full right of withdrawal for 14 days after you receive the goods. With us you also always have a 1-year warranty. Read more about our warranty policy.
Payment
Payment
Card payment
We offer card payment with Visa, Mastercard or American Express.
Sweden
With Svea you can choose an invoice and pay within 30 days, or pay in installments interest-free for up to 12 months. Flexible and secure.
Swish
Pay quickly and securely with Swish. Select Swish at checkout and approve the payment via your mobile with Mobile BankID.
Trustly
With Trustly you can pay directly from your bank account without a card or registration. Fast, easy and secure with BankID.
Apple Pay & Google Pay
It is also possible to pay with Apple Pay and Google Pay, which is fast and convenient.
PayPal
With PayPal, you can pay and transfer money without having to reveal your payment details and also flexibly choose how you want to pay.
Customer support
Customer support
We are happy to help you with any questions or concerns and we always respond within 24 hours. Contact us here.
Return
Return
You have a full right of withdrawal for 14 days after you receive the goods. Read more about how to proceed in our Returns & Refunds Policy.
Laws & regulations
Laws & regulations
Electric scooter
An electric scooter is considered a bicycle if it has a maximum speed of 20 km/h and a motor with a maximum of 250 W. However, it is important to note that the limit applies to the continuous (nominal) power – which means that the electric scooter may temporarily have a higher so-called peak power, for example up to 1000 W, as long as the nominal power does not exceed 250 W.
If the electric scooter exceeds 20 km/h in speed or has a motor with a nominal power of more than 250 W, other rules apply. The next classification is Moped class II and then Moped class IThere are technical requirements, such as braking systems, that must be met for an electric scooter to be classified as a moped.
Essentially, if it reaches up to 25 km/h it is considered Moped class II, while if the speed exceeds 40 km/h and the motor is stronger than 250 W, it is classified as Moped class I. For Moped class I, an AM driving license is required, the vehicle must be registered, and a helmet must be worn. Moped class II requires a driver's license and mandatory use of a helmet. If the electric scooter does not meet the requirements for a bicycle, Moped class I or II, it may not to be used on public roads.
Electric bike
For the requirements to apply to an electric bicycle, the motor must be limited to 250 W nominal (continuous) power and only assist pedaling up to 25 km/hThis means that the engine can temporarily deliver a higher so-called peak power, for example up to 1000 W, as long as the nominal power does not exceed 250 W. The electric bike must also be pedaled for the motor to work – it must not be able to drive on its own without the user's pedaling power.
Deviation from these requirements results in the vehicle being classified as moped, which entails other technical requirements, registration requirements, driving license and insurance.
We strongly recommend the use of a helmet, especially if the driver is under 15 years old, although it is not mandatory.
Read our blog posts for more information about the rules that apply to electric scooters and electric bicycles.
